Compact Design, Significant Advantages
In conventional linear motion systems, the motor and ball screw are typically connected using a separate coupling and bearing support. This arrangement requires additional installation space and increases the overall length of the actuator.

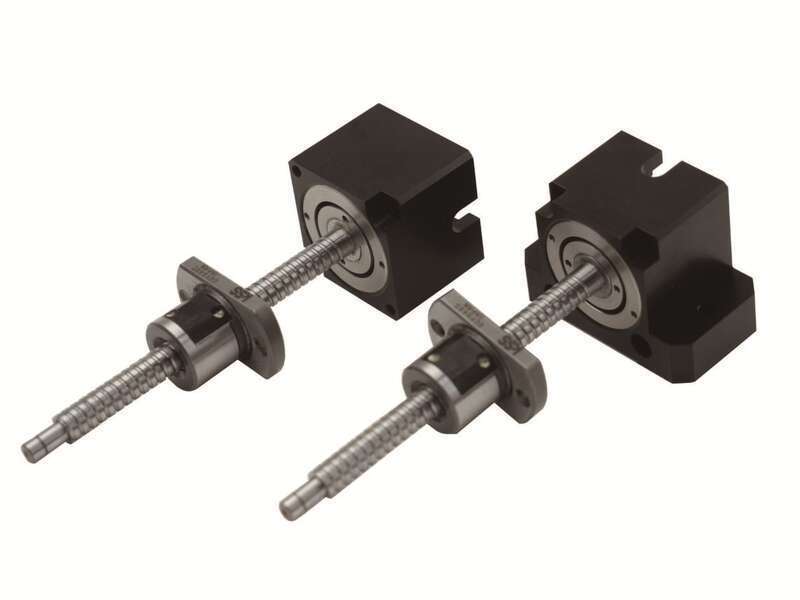

The KSS FX Series Flexible Link integrates the ball screw, bearing support, and an innovative coupling mechanism into a single compact assembly.
As a result, the required connection length can be reduced by more than 50% compared to conventional designs. At the same time, engineers retain the flexibility to combine different motors and ball screw configurations.
Key Technical Features
The FX Series offers several advantages for compact precision motion systems:
The modular design also allows engineers to select ball screw configurations tailored to specific application requirements.
Ideal for Miniaturisation
Thanks to its compact dimensions, the FX Series is particularly suitable for applications where installation space, positioning accuracy, and design flexibility are critical.
Typical applications include medical equipment, laboratory automation, optical instruments, semiconductor manufacturing equipment, and compact positioning systems.
For machine builders and design engineers, this technology offers new opportunities to develop smaller, lighter, and more efficiently integrated linear motion systems.
KSS Flexible Link – Available from Dynetics
As a representative of KSS, Dynetics supports engineers and machine builders in selecting the optimal combination of ball screws, motors, and drive technologies.
With the FX Series Flexible Link, Dynetics offers an innovative solution for applications requiring miniaturisation, precision, and reliable linear motion.
Whether developing a new compact actuator or optimising an existing design, the FX Series provides an efficient approach to reducing installation space without compromising design flexibility.
For more information, technical specifications, and product documentation, visit the Dynetics website:
www.dynetics.eu – KSS Flexible Link
Dynetics – Your Partner in Precision Motion Solutions.
