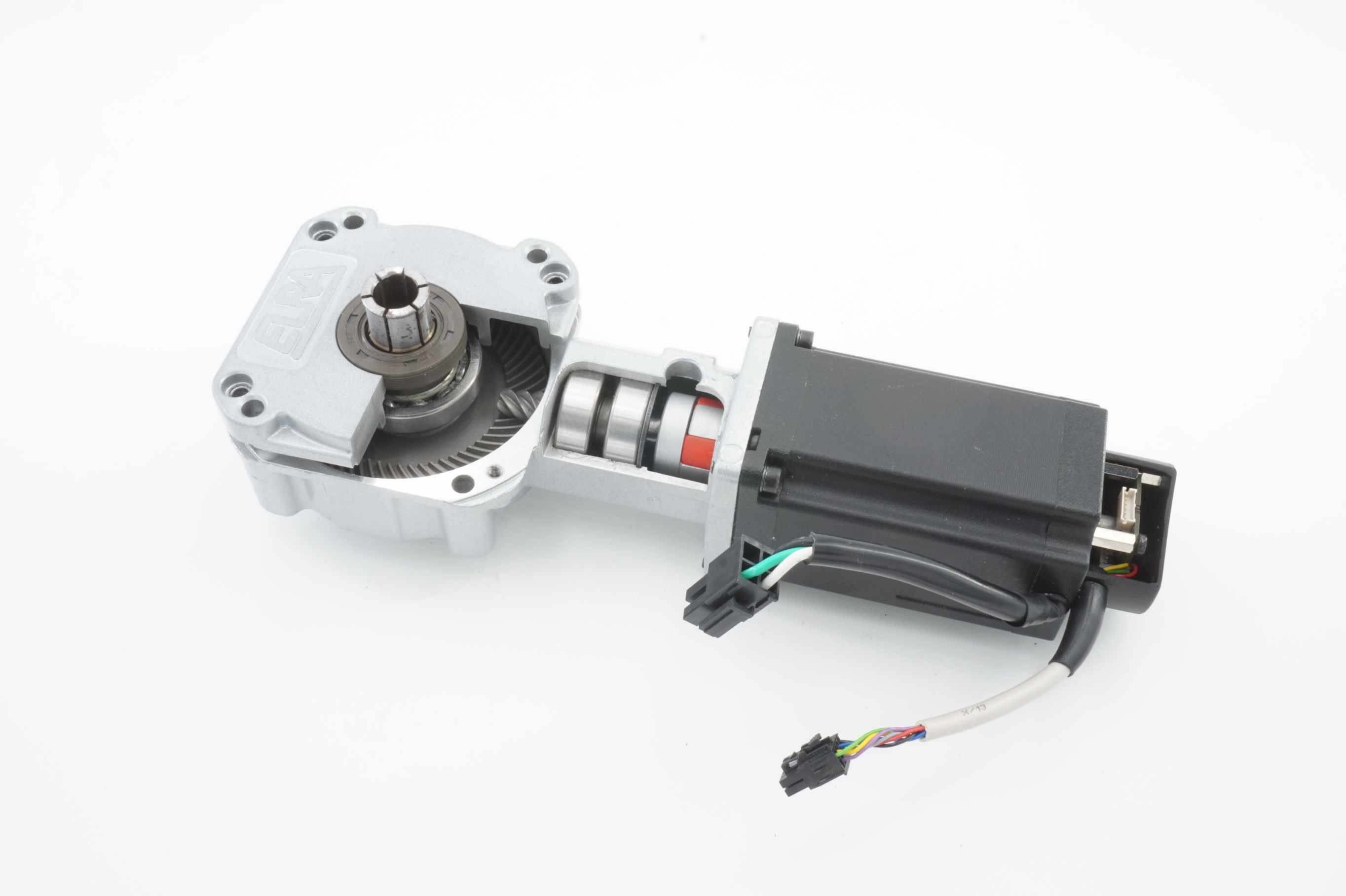

Home Rotary motion Brushless DC Motors BL57AL-24V + SKG85-11.8:1
the compact bevel gear motor.

BL57AL-24V + SKG85-11.8:1 Delivery from stock

BL57AL:

the compact bevel gear motor.

is ideally suited for applications with tight space conditions, where a force deflection of 90° is required.

Ideal areas of application for this complete drive are mechanical engineering and robotics applications. Due to grease lubrication, this bevel gearmotor can also be used in any mounting position.

Specifications:

  • Rated torque: 5Nm
  • Rated speed: 300rpm
  • Max. Torque: 10Nm
  • ball bearing
  • Lifetime grease lubrication

Optional:

  • external speed and position controller with CAN-Bus, Profibus, EtherCAT
  • hollow, or solid shaft
Quote request

Quote request BL57AL-24V + SKG85-11.8:1

Request more information

Request more information about BL57AL-24V + SKG85-11.8:1

Download datasheet
Details / Specifications / Documents

Details

BL57AL-24V + SKG85-11.8:1

the compact bevel gear motor.



  • Brushless DC motor
  • Votage: 24V/DC
  • Nom. Torque: 5 Nm
  • Max. Torque: 10 Nm
  • Current: 11 A
  • speed: 150 rpm
  • current at max. Torque: 18 A
  • Weight: 2,5 Kg
  • operating temp.: 0 ~40 deg C



Specifications

Voltage (rating)
24 V
Body Length
254 mm
speed
300 rpm
Supplier
Elra
rated torque
5000 mNm
Diameter/ sq size
56.4 mm
Motor + gear
spur gear

Documents

We collected the following documentation as PDF-File, that you can access by clicking on the icons.

If you have searched for info  but is not listed, or not completely answering your requirements, perhaps the document you are looking for is not public.

In that case, please contact us by using the following means:

Kegelradgetriebemotor (0.0 MB) Brushless DC motors 1 (6.9 MB)
Most of our products can be customized, please contact us Contact
