Dynetics represents a broad range of axial- and radial-fans with an AC or DC- power supply.
The fans combine long life with high reliability.
are ideally suited for cooling of compact equipment.
We can also customized the fan, like harness wire, different lead length, connector, etc

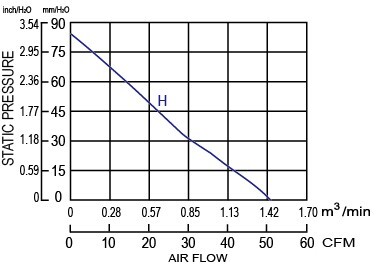

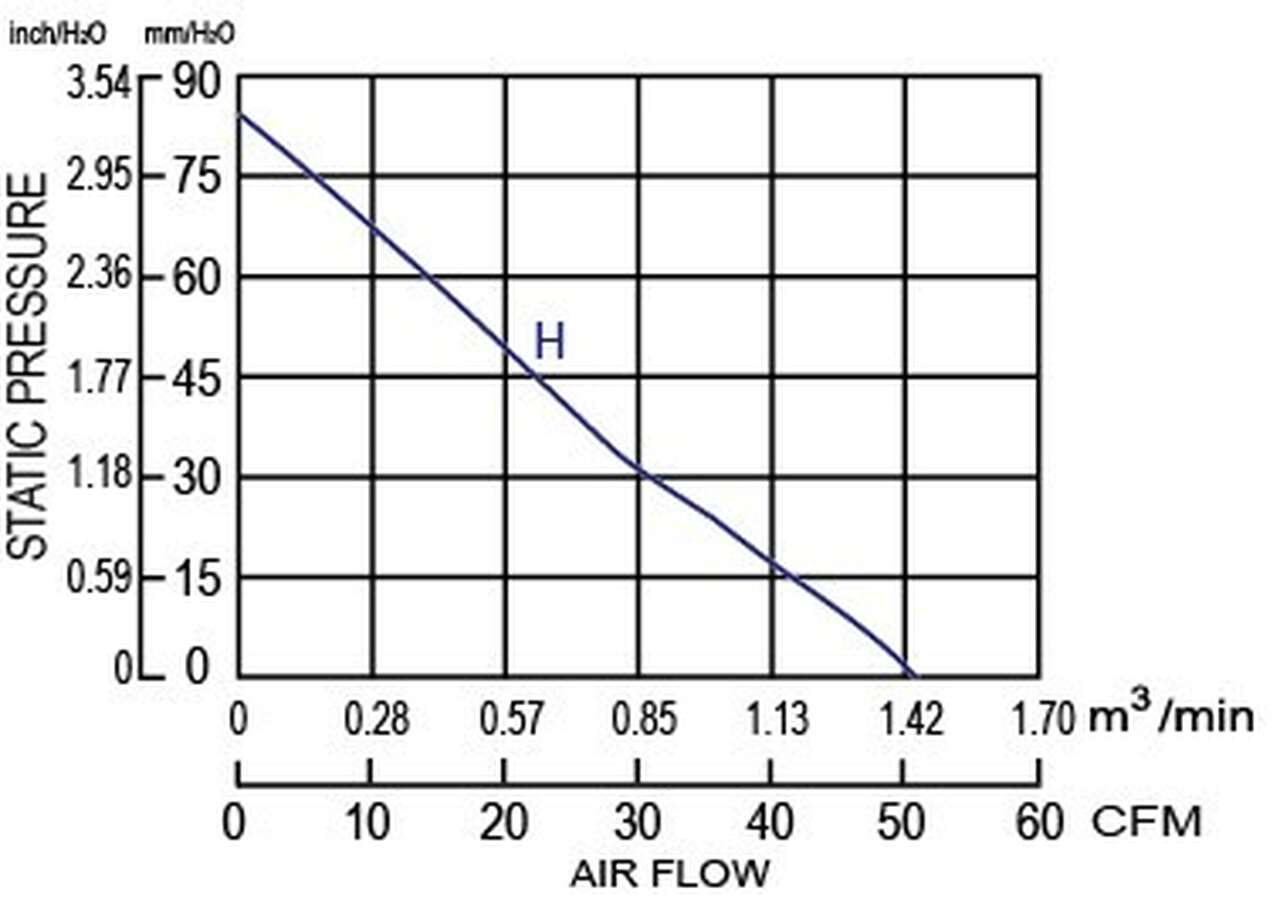

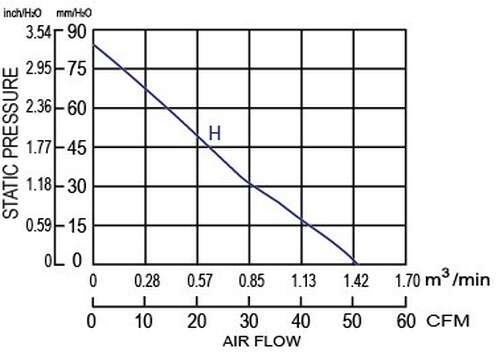

| Max. Airflow | 1,443 | m3/min |
| Max. Airflow | 51,0 | CFM |
| Max. Static pressure | 821,41 | Pa |
| Max. Static pressure | 83,76 | mmH2o |
| noise | 64,5 | dB |
| speed | 6400 | rpm |
| input | 20,4 | W |
| Voltage | 24 | V |
| Current | 850 | mA |

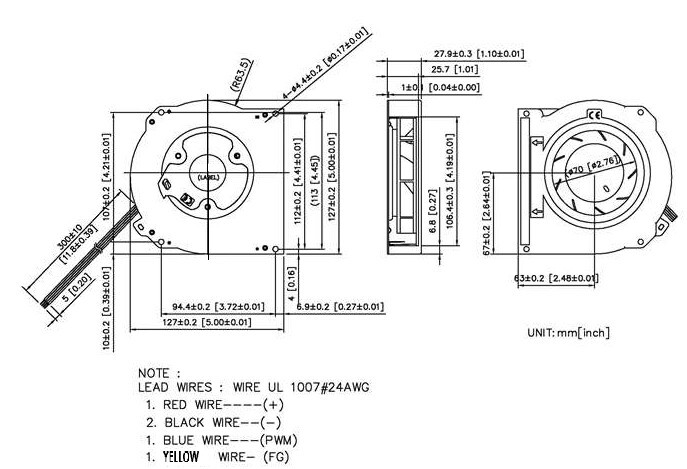

| sizes | 127 x 127 x 28 | mm |
| HOUSING | Housing: PC+ABS; Housing bottom plate: SECC |
| IMPELLER | Thermoplastic PBT, UL94V-0 |
| BEARING | Ball |
| OPERATING TEMPERATURE | -10°C to + 60°C |
| DIELECTRIC STRENGTH | 5mA Max. at 500 VAC for 1 minute |
| INSULATION RESISTANCE | 10M Ω min. @500 VDC |
| WEIGHT | 320g |
| ROHS COMPLIANCE | Yes |
| IP LEVEL | IP21 (Special IP Rating On Request) |
