DC09733024S1100H

Dynetics

represents a broad range of axial- and radial-fans with an AC or DC- power supply for equipment cooling with a variety of axial instrument ventilators and radial blowers from leading manufacturers, such as Nidec Servo and Nidec Copal

The fans combine long life with high reliability.

DC09733 series

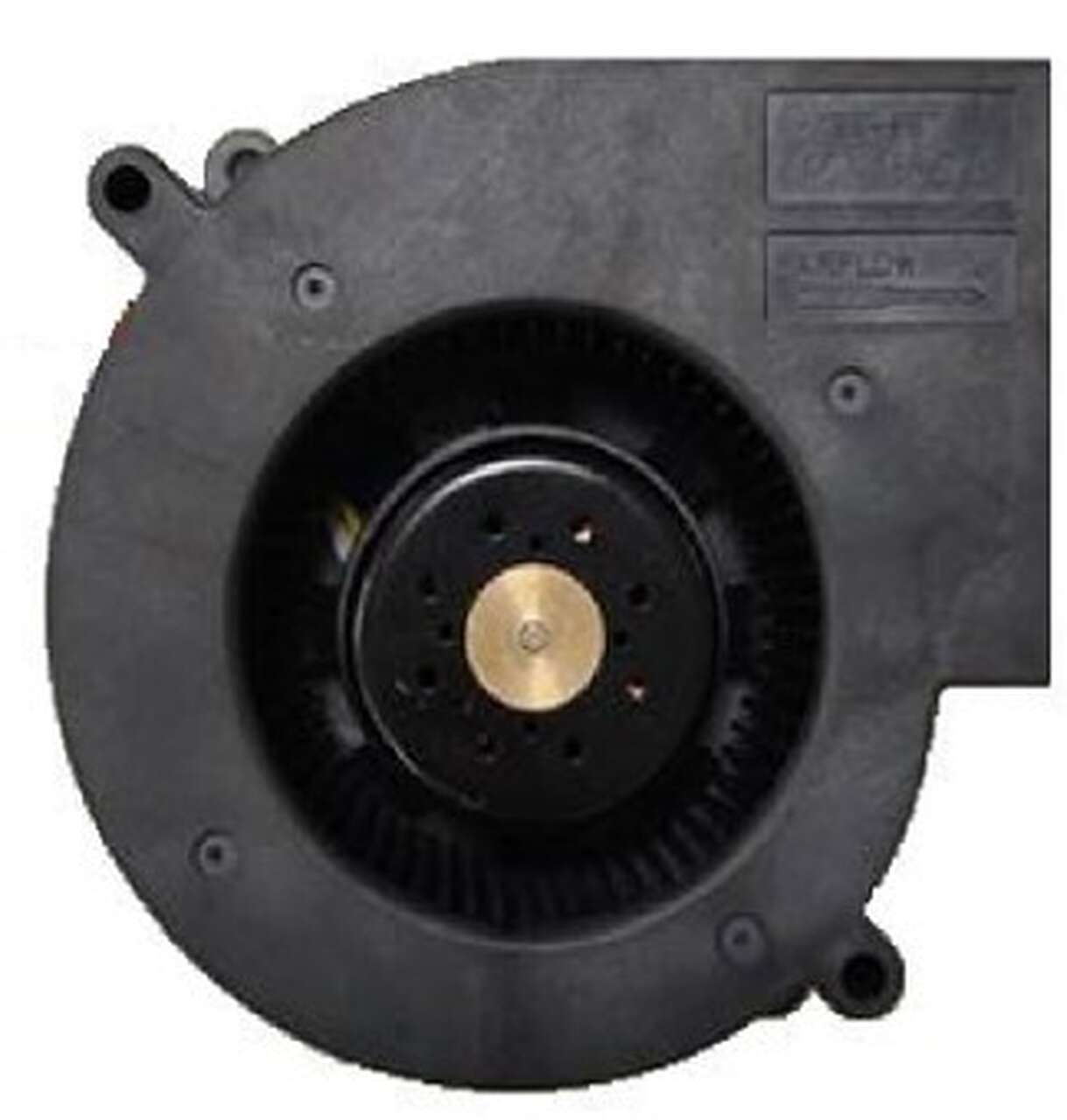

• radial fans

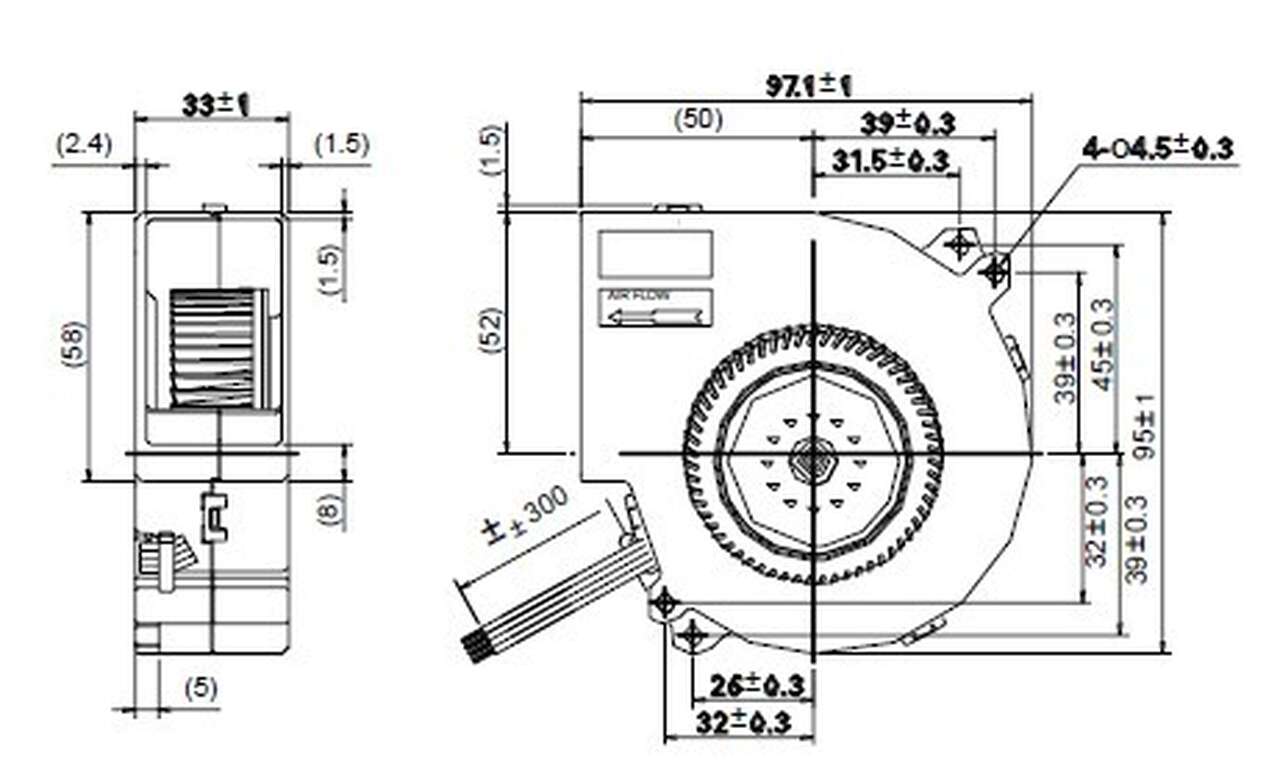

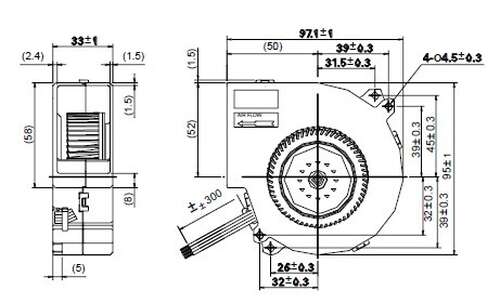

• sizes 97 x 95 x 33mm.
• Are ball bearing based
• DC-fans;
• the housing and impeller are made from thermoplastic PBT, UL94V-0;
• the weight is only 200g,
•  have an IP21 level, Special IP Rating On Request
• CE-approved

Optional:

• a Lock detection: (Suffix “-RD” or “RRD” ) for Rotation Detector Function.
• a “Speed signal” or speed detection : (Suffix “-FG” ) for a Signal-Frequency Generator Function (also called  for Frequency Generator Function.
• speed control by PWM: ( Suffix “-PWM”.) for automatic speed Controls via an external input signal.
• Speed Control by Voltage : speed controll by applying an external DC Voltage signal. from 0V to 10V(standard value is 0 to 5V).The speed will vary linear and is proportional to the % change of the "Vin" value,.
• Temperature Control: (Suffix “-T” ) with a built in thermistor that detects the ambient temperature, and controls the speed of the fan accordingly.
• High Temperature Environments: Suffix basic “-HT” for temperature operating ranges -10~90 °C
• Special IP Rating On Request

We can also customized the fan, like harness wire, different lead length, connector, etc

are ideally suited for cooling of compact equipment.

We can also customized the fan, like harness wire, different lead length, connector, etc
