DS09225024M0001S

Dynetics

represents a broad range of axial- and radial-fans with an AC or DC- power supply for equipment cooling with a variety of axial instrument ventilators and radial blowers from leading manufacturers, such as Nidec Servo and Nidec Copal.

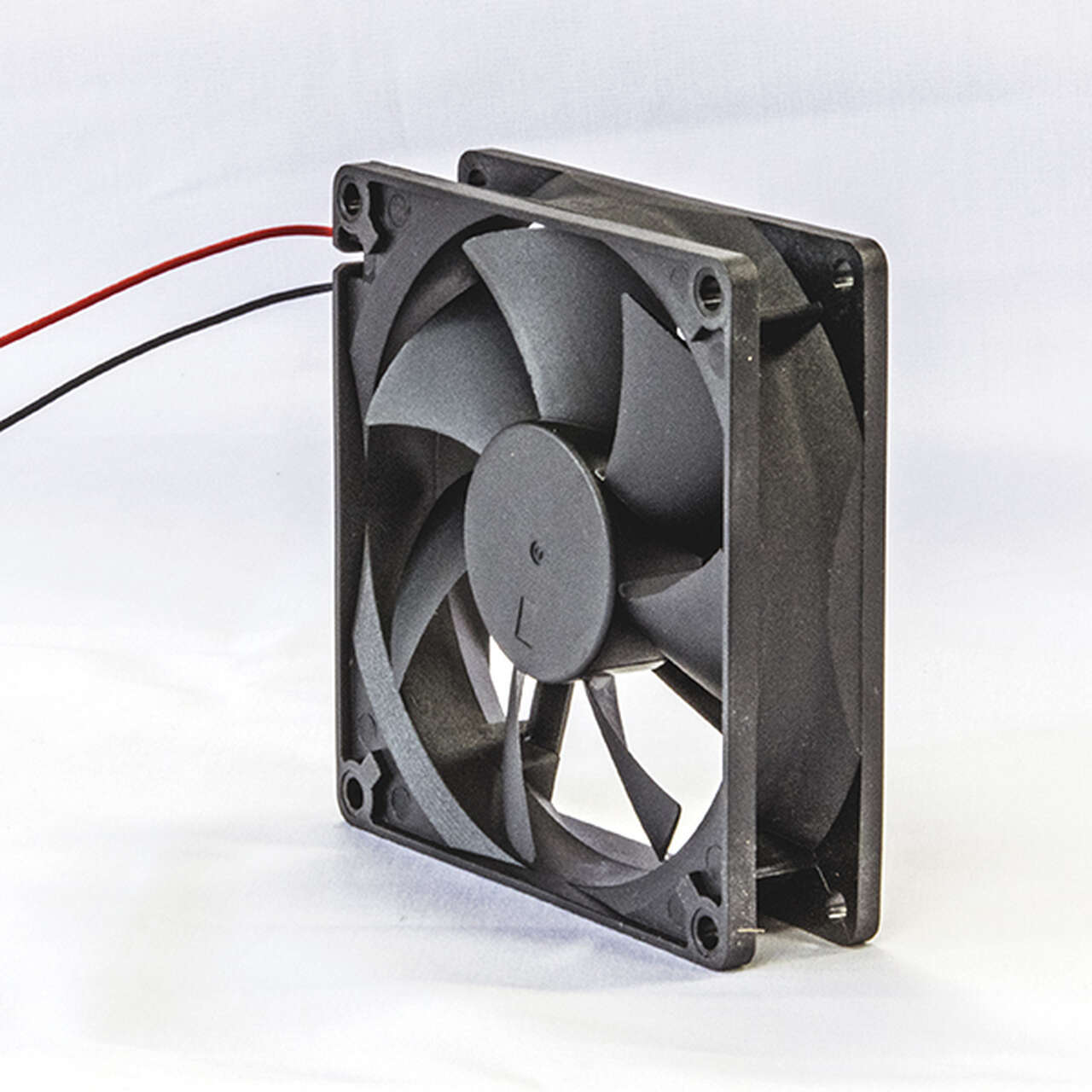

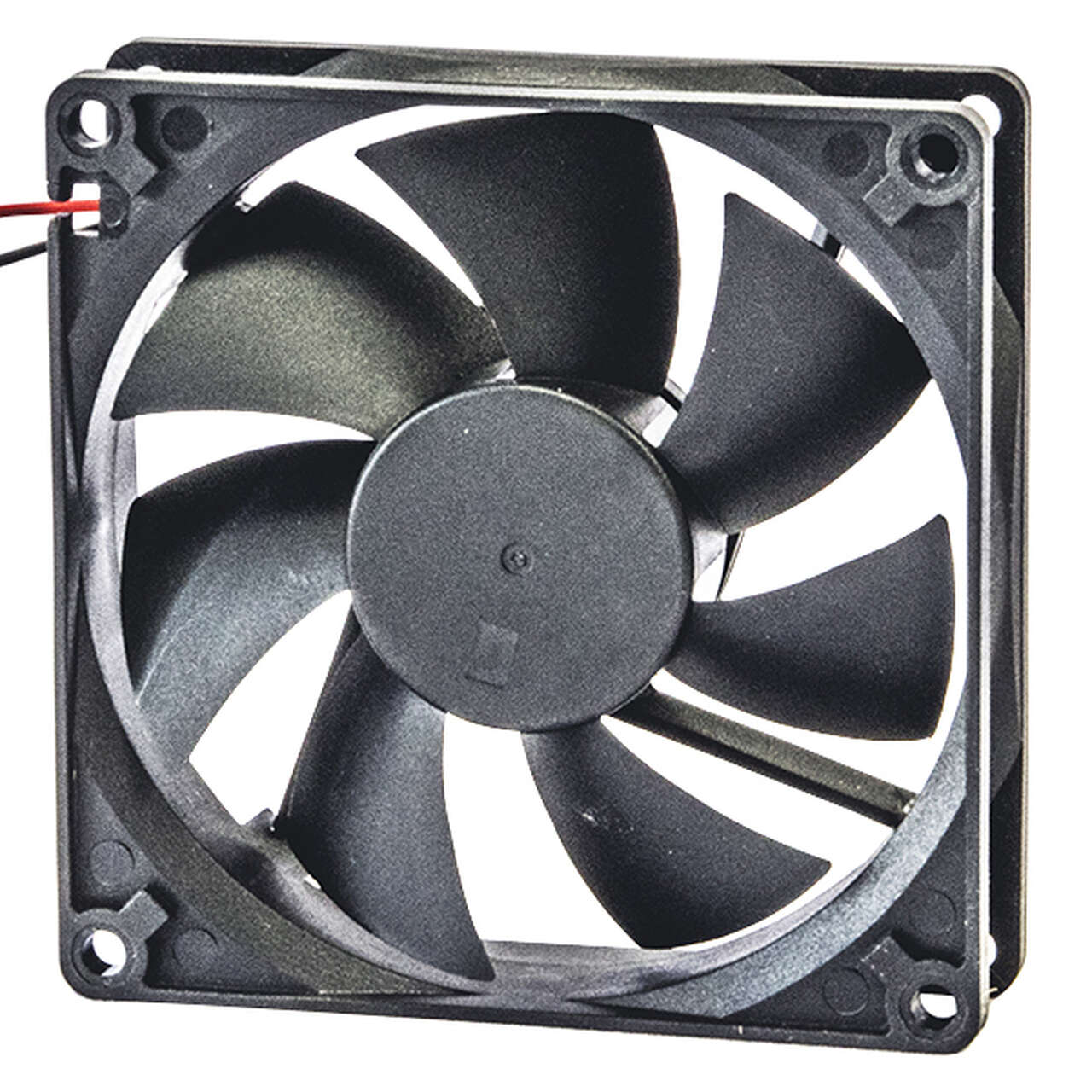

DS09225-series

• axial fans

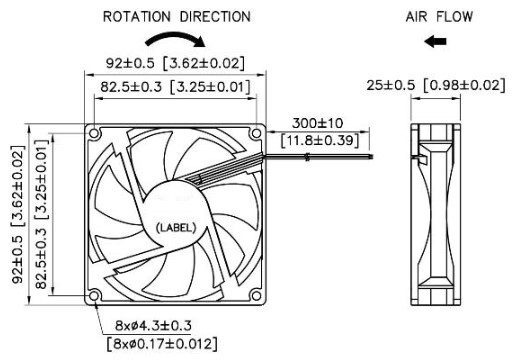

• sizes 92 x 92 x 25mm
• The BLDC fans are light weight (80g),
• 300mm leadwire,

Optional:

• a Lock detection: (Suffix “-RD” or “RRD” ) for Rotation Detector Function.
• a “Speed signal” or speed detection : (Suffix “-FG” ) for a Signal-Frequency Generator Function (also called  for Frequency Generator Function.
• speed control by PWM: ( Suffix “-PWM”.) for automatic speed Controls via an external input signal.
• Speed Control by Voltage : speed controll by applying an external DC Voltage signal. from 0V to 10V(standard value is 0 to 5V).The speed will vary linear and is proportional to the % change of the "Vin" value,.
• Temperature Control: (Suffix “-T” ) with a built in thermistor that detects the ambient temperature, and controls the speed of the fan accordingly.
• High Temperature Environments: Suffix basic “-HT” for temperature operating ranges -10~90 °C
• waterproof (example IP67)

We can also customized the fan, like harness wire, different lead length, connector, etc
