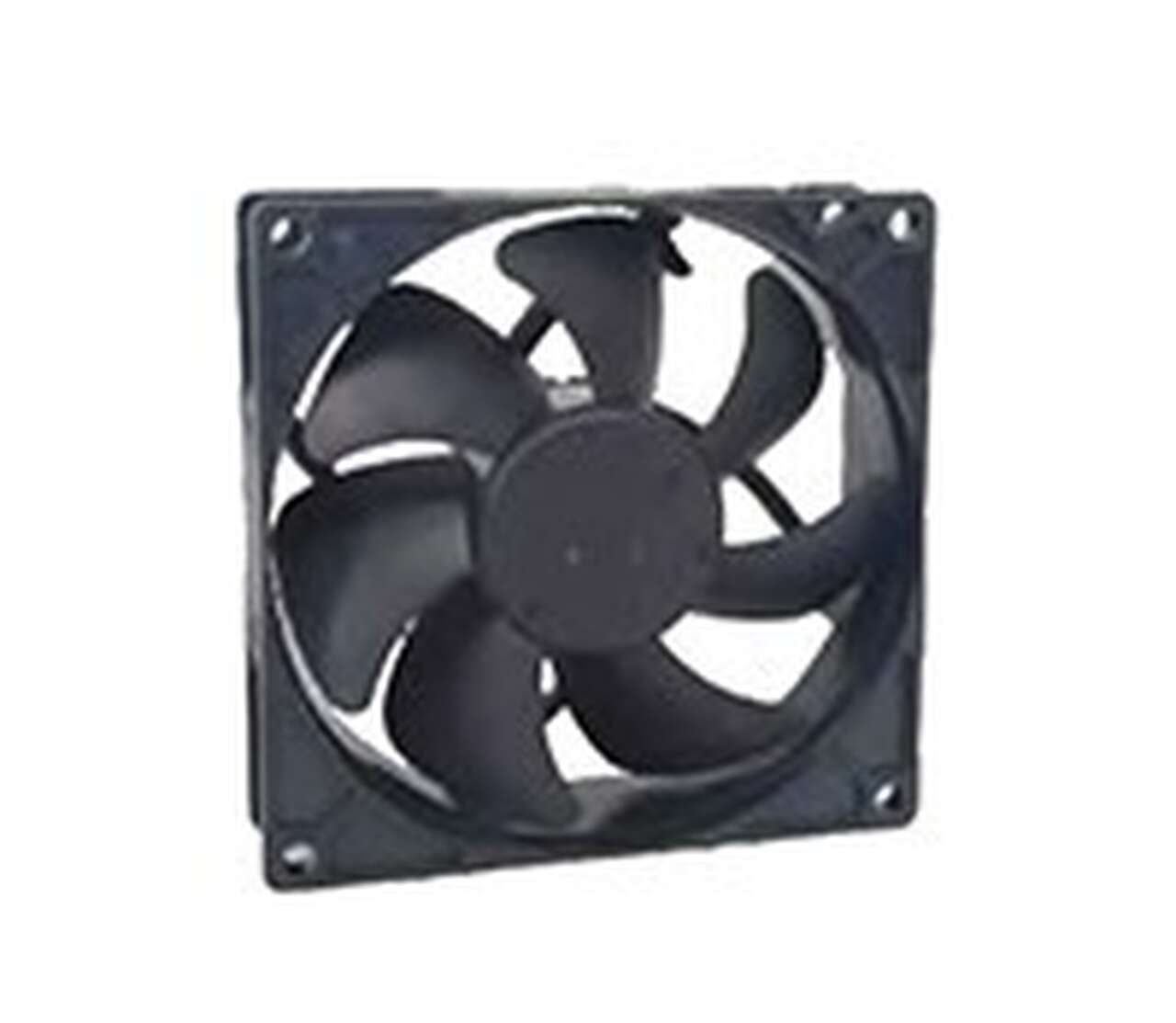

Axial brushless DC fan plastic frame

DC09238024H11100

Dynetics

represents a broad range of axial- and radial-fans with an AC or DC- power supply for equipment cooling with a variety of axial instrument ventilators and radial blowers from leading manufacturers, such as Nidec Servo and Nidec Copal.

DC09238-series

  • axial fans
  • Plastic frame (94V-0) and plastic impellor (94V-0)
  • sizes 92x92x38mm
  • bearing system: 2 ball bearings
  • available in 12-; 24-; or 48V/DC
  • The BLDC fans weight 216g,
  • 300mm leadwire,

Optional:

  • a Lock detection: (Suffix “-RD” or “RRD” ) for Rotation Detector Function.
  • a “Speed signal” or speed detection : (Suffix “-FG” ) for a Signal-Frequency Generator Function (also called  for Frequency Generator Function.
  • speed control by PWM: ( Suffix “-PWM”.) for automatic speed Controls via an external input signal.
  • Speed Control by Voltage : speed controll by applying an external DC Voltage signal. from 0V to 10V(standard value is 0 to 5V).The speed will vary linear and is proportional to the % change of the "Vin" value,.
  • Temperature Control: (Suffix “-T” ) with a built in thermistor that detects the ambient temperature, and controls the speed of the fan accordingly.
  • High Temperature Environments: Suffix basic “-HT” for temperature operating ranges -10~90 °C
  • Special IP Rating On Request

We can also customized the fan, like harness wire, different lead length, connector, etc

Quote request

Quote request DC09238024H11100

Request more information

Request more information about DC09238024H11100

Download datasheet
Details / Specifications / Documents

Details

DC09238024H11100

Axial brushless DC fan plastic frame; 4-wire, with PWM speed control, Pulse sensor; IP44

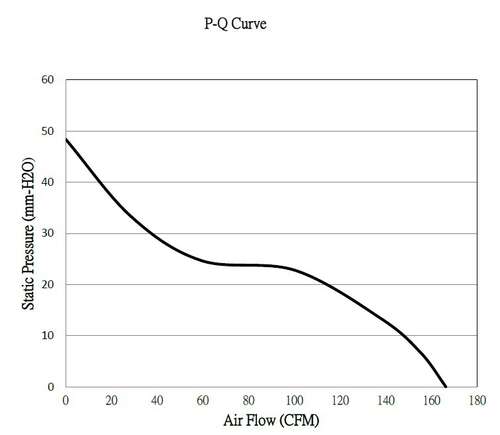

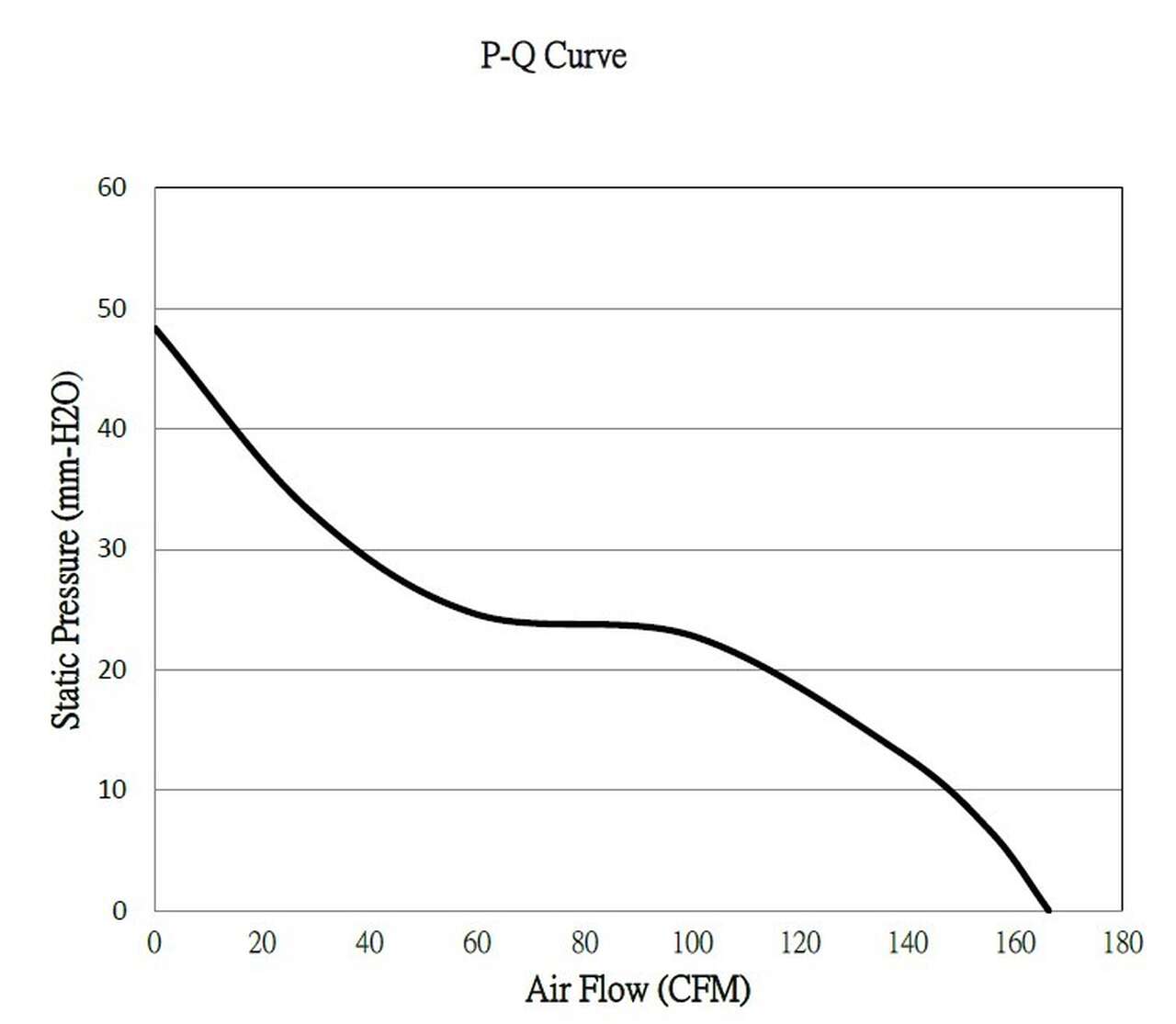

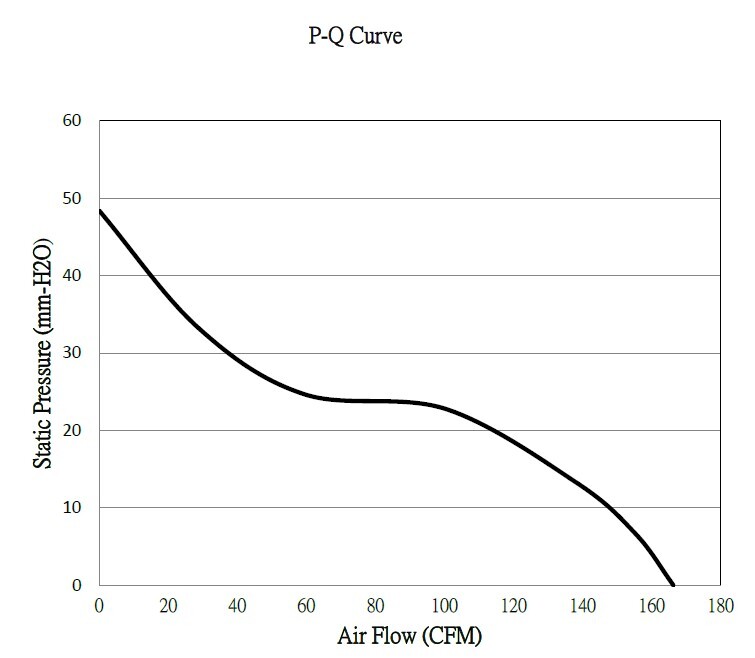

Max. Airflow4,71m3/min
Max. Airflow166,37CFM
Max. Static pressure474,64Pa
Max. Static pressure48,40mmH2o
noise35,0dB
speed8000rpm
input33,84W
Voltage24V
Current1410mA

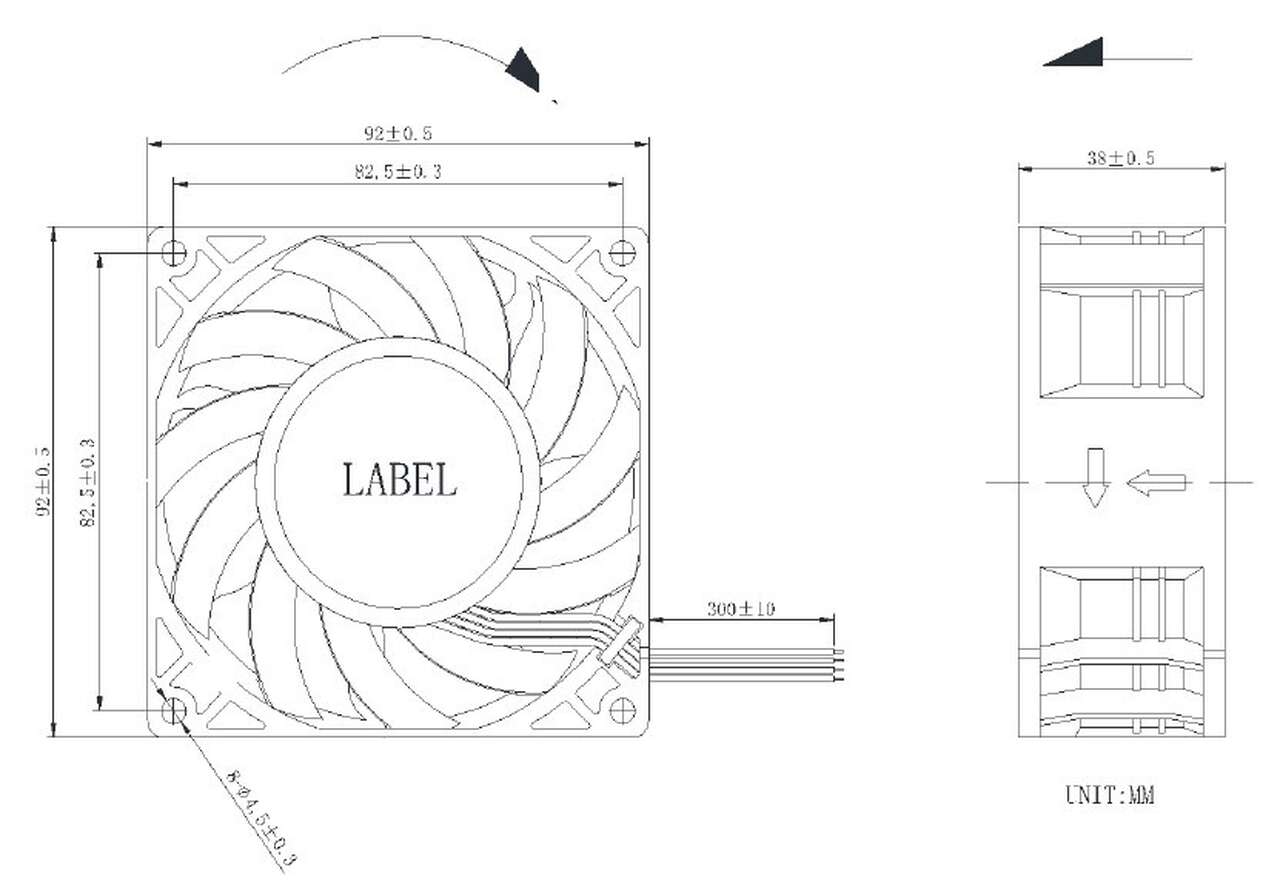

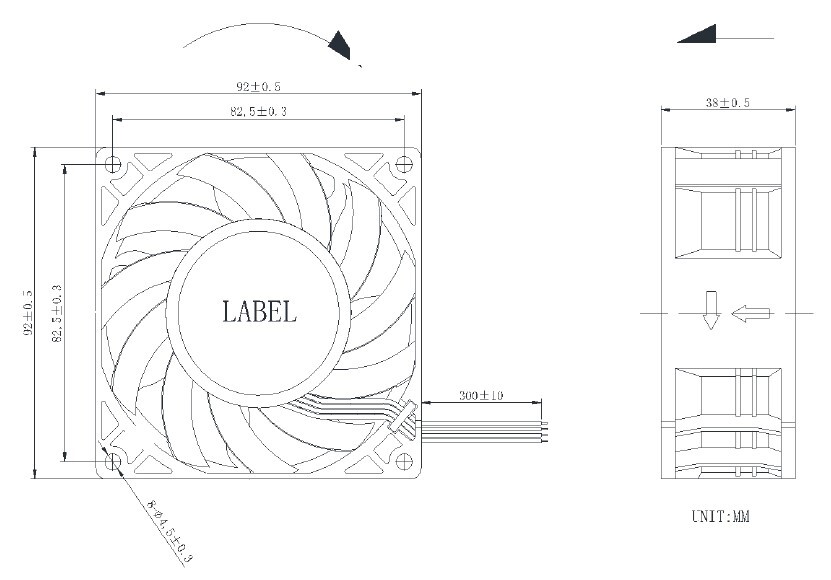

sizes92 x 92 x 38mm
operating Voltage range14 - 26,2 V
operating temperaturemin10 - +70°C
HOUSINGThermoplastic PBT, UL94V-0
IMPELLERThermoplastic PBT, UL94V-0
BEARINGBall
OPERATING TEMPERATURE-10°C to + 70°C
DIELECTRIC STRENGTH5mA Max. at 500 VAC for 1 minute
INSULATION RESISTANCE10M Ω min. @500 VDC
WEIGHT0,216 kg
ROHS COMPLIANCEYes
IP LEVELIP44 (Special IP Rating On Request)
life expectationL10 life 70.000 hours at 40 deg.C; room humidity 15%-65%RH
Insulation classUL: class A

Lead wires: UL1007#24AWG

  • Colour code:
    • Black wire (-)
    • Red wire (+)
    • Yellow wire (FG)
    • Blue wire (PWM)

PWM speed control: Signal description (yellow wire)

  • input low level Voltage: Max. <0,8V
  • input high level Voltage: at min. >2,6V; max. <5V
  • PWM frequency range: 100Hz to 100KHz.
  • Max. sink current: 8mA
  • Impedance: 10K Ohm min.

Fan speed control (blue wire):

  • Fan input Voltage: 26,2V
  • The fan should run at full speed at PWM 100% duty cycle input.
  • The fan should have a zero speed at PWM signal between 0% to 15% duty cycle
  • The fan will run at full speed when the control wire (blue) is disconnected

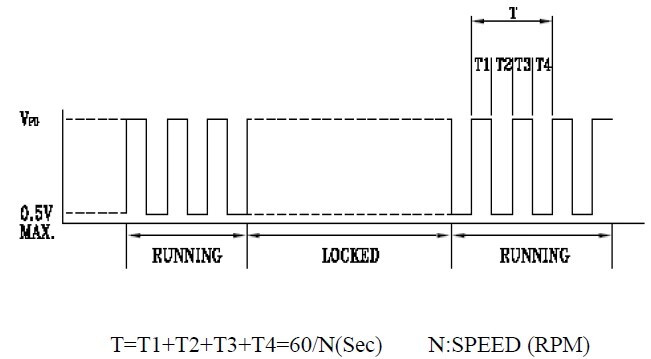

Pulse signal Specifications:

note: prevent that the lead wire of the FG signal touches the positive or negative leadwire


Output: open collector


  • V FG Maximum Voltage = 26,2V (the powersource is from customer's system)
  • IC maximum current: 5mA
  • low level Voltage = 0,5V max.
  • R ≥ V FG / Ic

Protection:

  • Locked rotor potection:
    • Impedance of motor winding protects motor from damage in 72hours of locked rotor condition at rated Voltage.
    • After auto power off, circuit attempt to restart in 3 to 8 seconds
  • Polarity protection:
    • capable to withstanding a reverse connection of positive and negative leads



Specifications

Product type
DC09238024H11100
Voltage (rating)
24 V
Max. Airflow
4.71 m3/min
Max. Airflow
166.37 CFM
Max. Static pressure
474.64 Pa
Max. Static pressure
48.4 mmH2o
noise
35 dB
speed
8000 rpm
Input
33.84 W
Current (rating)
1410 mA
size frame
92 mm
Supplier
Dynetics
Operating temperature
-10 - +70 Degrees Celcius
