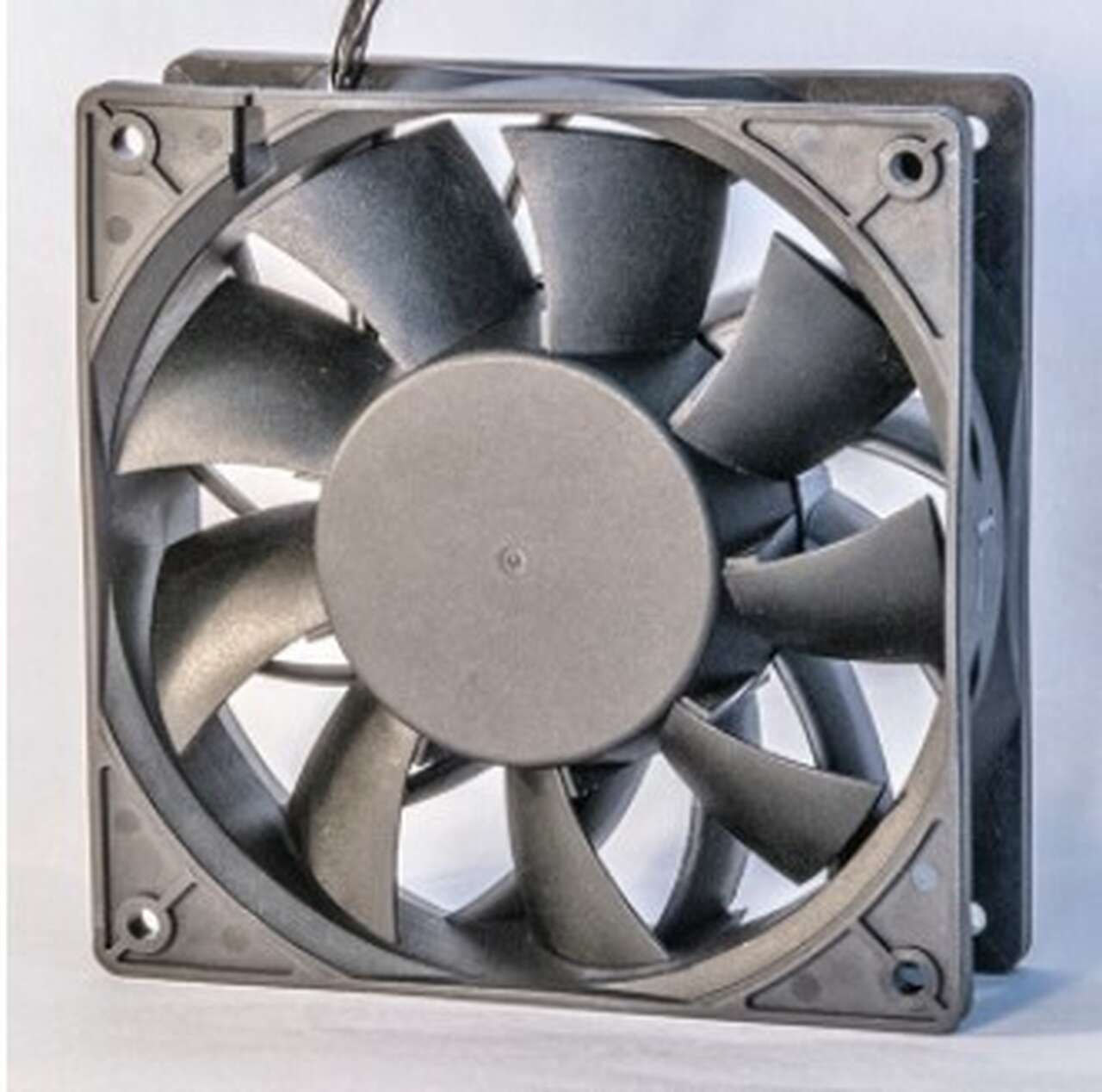

EC axial fans

DYE12038V2HBLD-YH3

DYE12038D-YH3

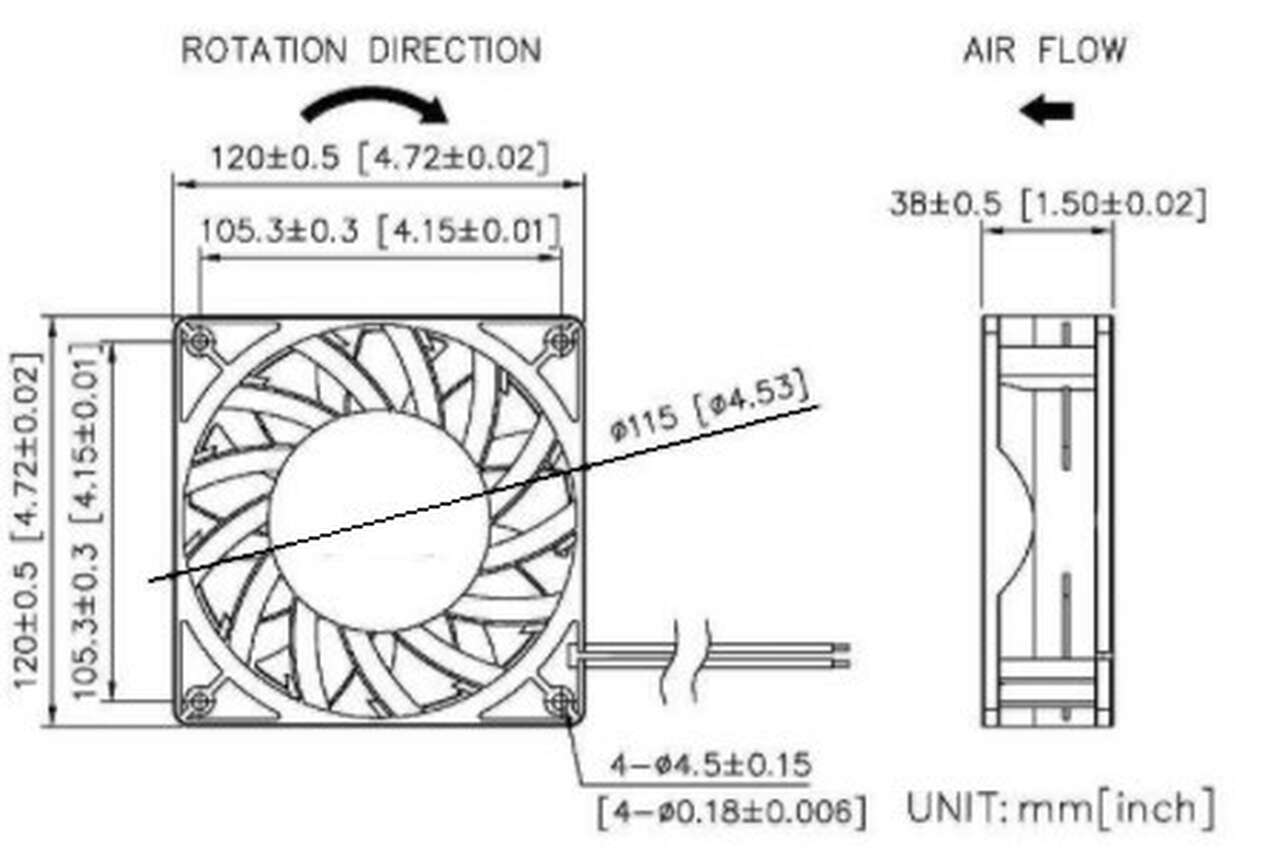

  • series sizes 120 X 120 X 38mm,
  • are long life time , ball bearing based Electronic Commutated (EC) AC-fans,
  • the housing is made from thermoplastic PBT, UL94V-0,
  • the impeller from Thermoplastic PBT+30% Fiber glass, UL94V-0 ;.
  • The weight is 294,5g,
  • have an IP21 level (other ratings on request),
  • are CE-approved
Quote request

Quote request DYE12038V2HBLD-YH3

Request more information

Request more information about DYE12038V2HBLD-YH3

Download datasheet
Details / Specifications / Documents

Details

DYE12038V2HBLD-YH3

EC axial fans





  • HOUSING                                                        Thermoplastic PBT, UL94V-0
  • IMPELLER                                                       Thermoplastic PBT+30% Fiber glass, UL94V-0
  • BEARING                                                         Ball
  • INSULATION                                                    Class A
  • OPERATING TEMPERATURE                        -10°C to + 60°C
  • OPERATING VOLTAGE RANGE
    • 80 VAC to 130VAC for 110V Type
    • 100 VAC to 240 VAC for 220V Type
  • DIELECTRIC STRENGTH                             5mA Max. at 500 VAC for 1 minute
  • INSULATION RESISTANCE                         10M Ohm min. @500 VDC
  • MOTOR TYPE                                               Brushless EC Motor
  • TERMINATION                                              Lead Wire
  • WEIGHT                                                        294.5 g
  • ROHS COMPLIANCE                                   Yes
  •  IP LEVEL                                                      IP21 (Special IP Rating On Request)


Voltage (rating) 220 V

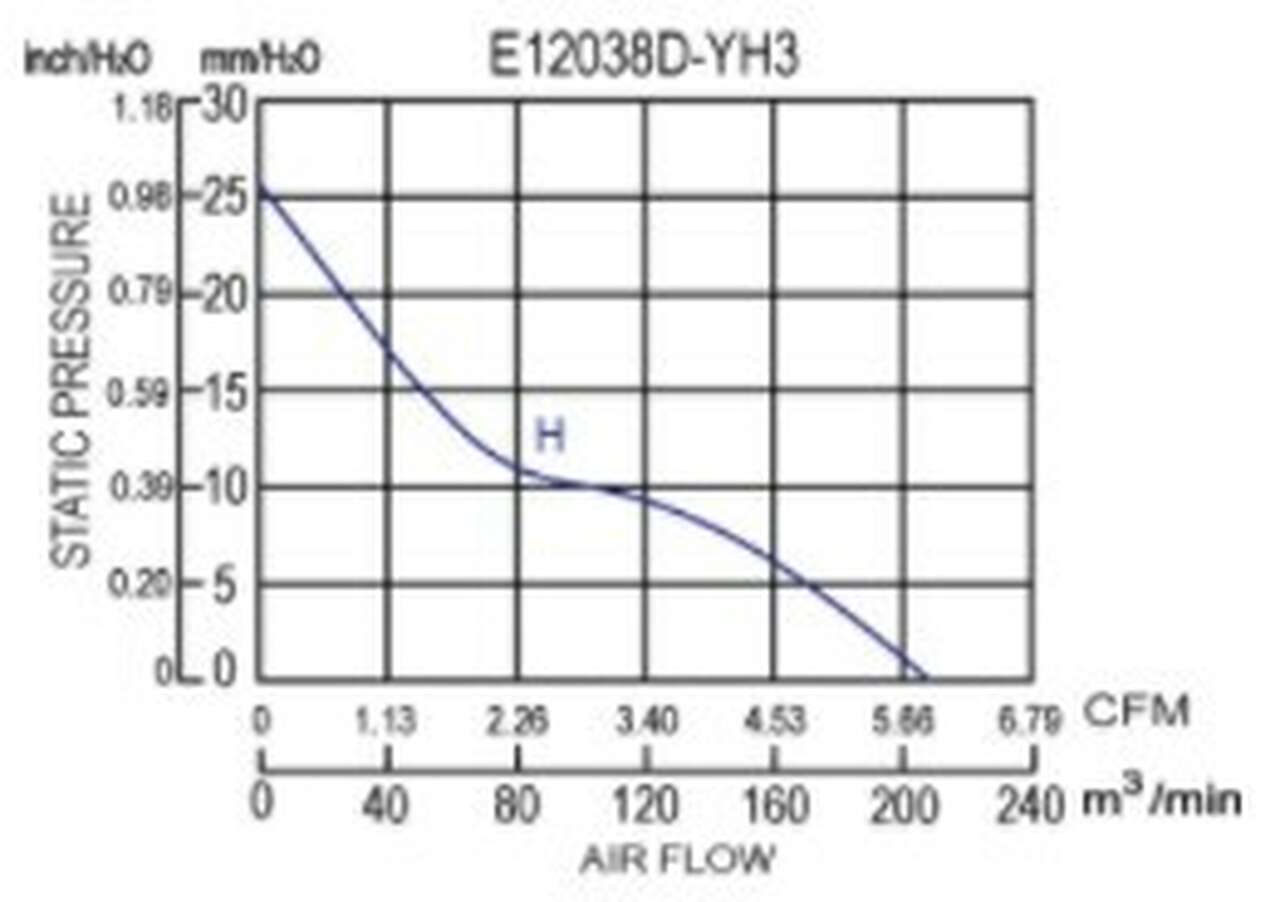

Max. Airflow5.94 m3/min
Max. Airflow209.1 CFM
Max. Static pressure 250.07 Pa
Max. Static pressure25.5 mmH2o
noise64.7 dB
speed4500 rpm
Input30 W
size frame 120 mm
Operating temperature -10 - +60 Degrees Celcius


Specifications

Electronically Commutated (EC) AC-fan
Voltage (rating)
220 V
Max. Airflow
5.94 m3/min
Max. Airflow
209.1 CFM
Max. Static pressure
250.07 Pa
Max. Static pressure
25.5 mmH2o
noise
64.7 dB
speed
4500 rpm
Input
30 W
size frame
120 mm
Supplier
Dynetics
Operating temperature
-10 - +60 Degrees Celcius

Documents

We collected the following documentation as PDF-File, that you can access by clicking on the icons.

If you have searched for info  but is not listed, or not completely answering your requirements, perhaps the document you are looking for is not public.

In that case, please contact us by using the following means:

FansBlowers 2023 v7 EN (19.0 MB)
Most of our products can be customized, please contact us Contact
