Home Electronics AC servo drives / controllers (VFD/VSD) Commander C200
variable speed drives 0.25 kW - 132 kW (0.33 hp to 200hp) 100 V | 200 V | 400 V

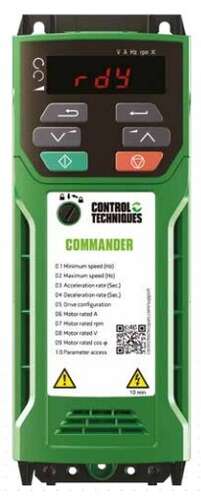

Commander C200

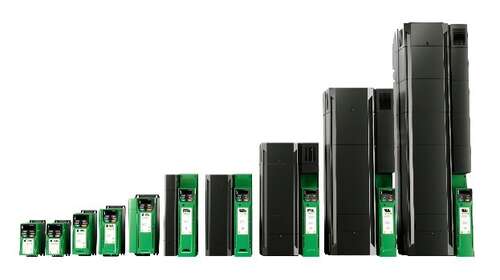

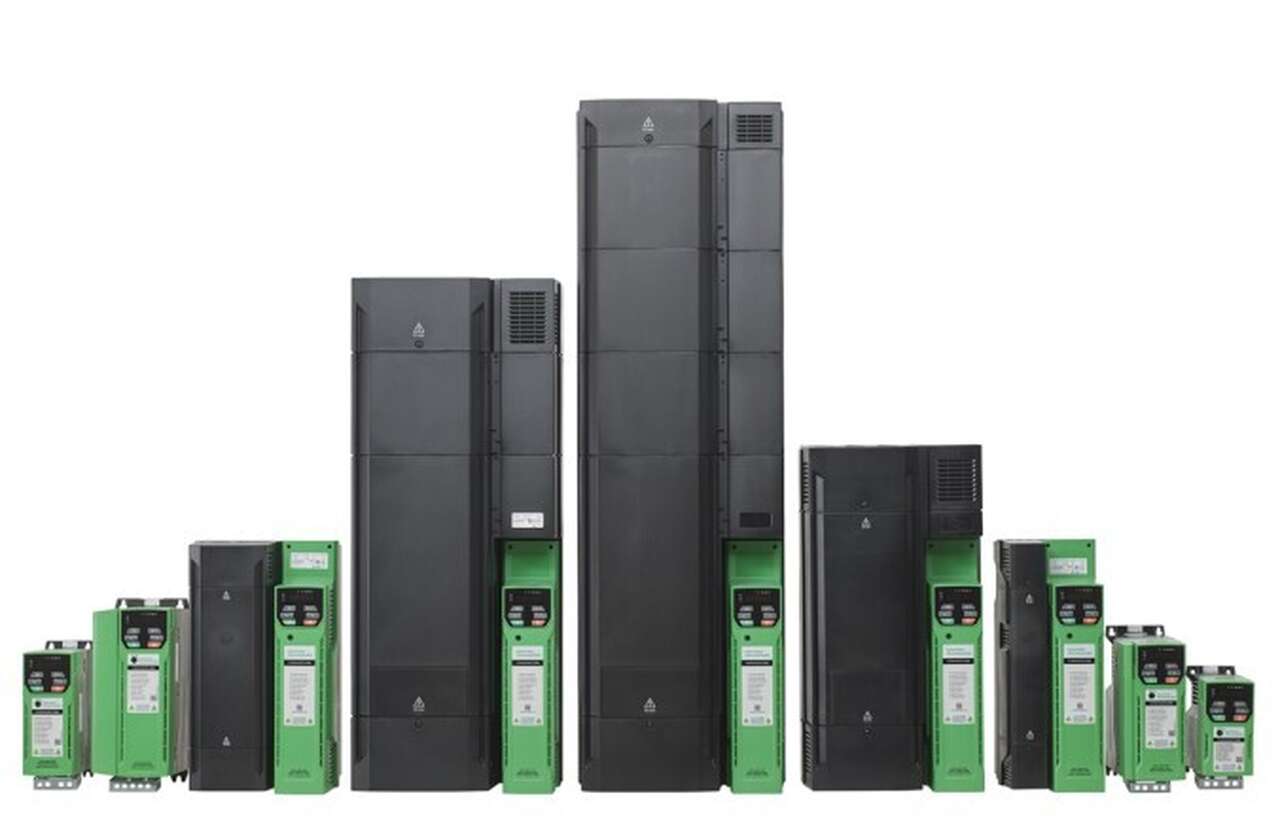

Commander C family

AC DRIVES, GENERAL PURPOSE

the first world commercial vector drive

Highlights:

  • Set just 4 parameters to get your drive started
  • Plug-in options for advanced control
  • Dual Safe Torque Off (STO)
  • Equipped with the latest energy saving features
  • Up to 180% overload for high torque applications
  • On board PLC
  • Straightforward installation and commissioning
  • Easy motor pairing and performance control
  • Robust and reliable design

Super-quick start-up Tap in 4 key parameters (the motor rated current, RPM, voltage and power factor) and off you go.

Equipped with the latest energy saving features:  The latest energy-saving technology means you get high productivity and low running costs.

Flexible connectivity: The plug in communication modules enable integration with a wide range of industrial fieldbuses

available models:

  • C200
  • C300 – As C200 + dual STO
Quote request

Quote request Commander C200

Request more information

Request more information about Commander C200

Download datasheet
Details / Specifications / Documents

Details

Commander C200

variable speed drives: 0.25 kW - 132 kW (0.33 hp to 200hp) 100 V | 200 V | 400 V





Control ModeOpen loop vector or V / Hz induction motor control

Open loop Rotor Flux Control for induction motors (RFC-A)
Environment
Ambient Operating TemperatureSize 1 - 4: -20°C to 40°C (-4°F to 104°F) @ 3 kHz switching freq. | Operation to 60°C (140°F) with de-rating

Size 5 - 9: -20°C to 40°C (-4°F to 104°F) @ 3 kHz switching freq. | Operation to 55°C (131°F) with de-rating
Cooling MethodForced convection
Humidity95 % non-condensing at 40 °C (104 °F)
Storage TemperatureSize 1 - 4: -40°C to 60°C (-40°F to 140°F) — 24 months Max.

Size 5 - 9: -40°C to 55°C (-40°F to 131°F) — 24 months Max.
AltitudeDe-rate the continuous output current by 1% for every 100 m (328 ft) above 1000 m (3,280 ft) to a maximum of 3000 m (9,840 ft)
VibrationTested in accordance with IEC 60068-2-64 and IEC 60068-2-6
Mechanical ShockTested in accordance with IEC 60068-2-27 and IEC 60068-2-29
Enclosure RatingIP20, NEMA 1 conduit kits available
Electromagnetic CapabilityIEC/ EN 61800-3 Immunity and Emissions

EN 61000-6-2: Immunity for industrial environments

EN 61000-6-4: Emissions for industrial environmentsM/br> EN 61000-3-2: Harmonic current emissions

An EMC data sheet is available on request
RoHSComplies with the Restriction of Hazardous Substances Directive (2011/65/EU)
AC Supply Requirements
Voltage100 V models: 100 to 120 Vac ±10%

200 V models: 200 to 240 Vac ±10%

400 V models: 380 to 480 Vac ±10%
Phase1Ø and 3Ø (Model dependent)
Maximum Supply Imbalance2% negative phase sequence, 3% voltage imbalance between phases
Input Frequency 45 to 66 Hz
Input Displacement Power Factor0.97
Control
Switching FrequencySize 1 - 4: 0.667, 1, 2, 3, 4, 6, 8 12 & 16 kHz

Size 5 - 9: 2, 3, 4, 6, 8 12 & 16 kHz
Output Frequency Range 0 to 550 Hz
Frequency Accuracy±0.02% of full scale
Frequency Resolution 0.01 Hz
Analog Input Resolution Voltage mode: 11 bits (unipolar) Current mode: 11 bits
Braking Dynamic braking transistor included, requires external resistor
Protection
DC Bus Undervoltage Trip100 V models: 175 Vdc

200 V models: 175 Vdc

400 V models: 330 Vdc
DC Bus Overvoltage Trip Frame sizes 1 - 4:

100 V models: 510 Vdc

200 V models: 510 Vdc

400V models: 870 Vdc

Frame size 5 - 9:

200V models: 415 Vdc

400 V models: 830 Vdc
Drive Overload TripProgrammable: Default settings: 180% for 3s, 150% for 60s
Instantaneous Overcurrent Trip 220% of rated motor current
Phase Loss Trip DC bus ripple threshold exceeded
Over-temperature Trip Drive heatsink temperature exceeds 95°C (203°F)
Short Circuit Trip Protects against output phase-to-phase fault
Ground Fault Trip Protects against output phase-to-ground fault
Motor Thermal Trip Electronically protects the motor from overheating due to loading conditions
Approval & Listings
UL, cULUL file NMMS/8: E171230
CE CE approval
EU These products comply with the Restriction of Hazardous Substances Directive (2011/65/EU), the Low Voltage Directive (2014/35/EU) and the Electromagnetic Compatibility Directive, (2014/30/EU).
RCM RCM Registered supplier No. 12003815281
ISO Manufacturing facilities comply with ISO 9001:2015 and ISO 14001
TÜV C300 models only: The Safe Torque Off (STO) function may be used as a safety component of a machine.

Type examination certificates by TÜV Rheinland:

Frame sizes 1 - 4: No. 01/205/5383.03/18

Frame sizes 5 - 9: No. 01/205/5387.02/18
Functional safety parameters:

EN ISO 13849-1 - Cat 4, PLe

EN61800-5-2/EN62061/IEC 61508 - SIL 3

UL functional safety approval: FSPC E171230


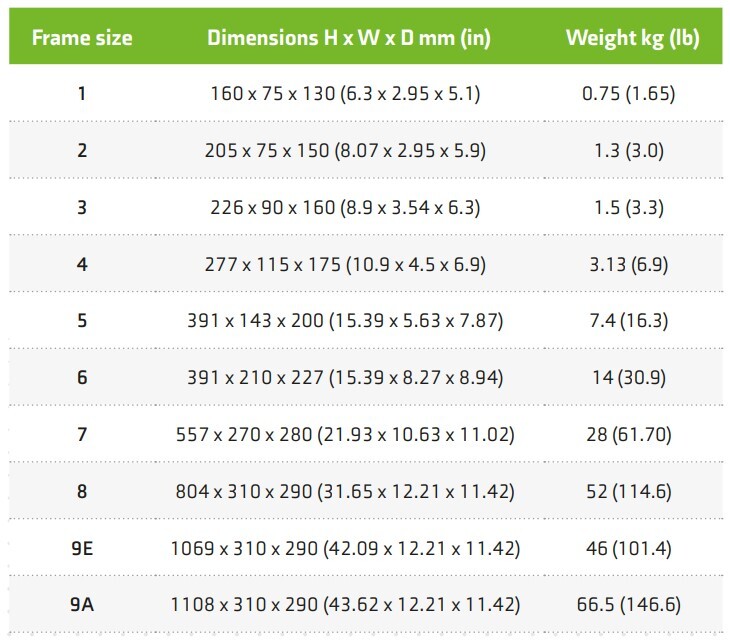

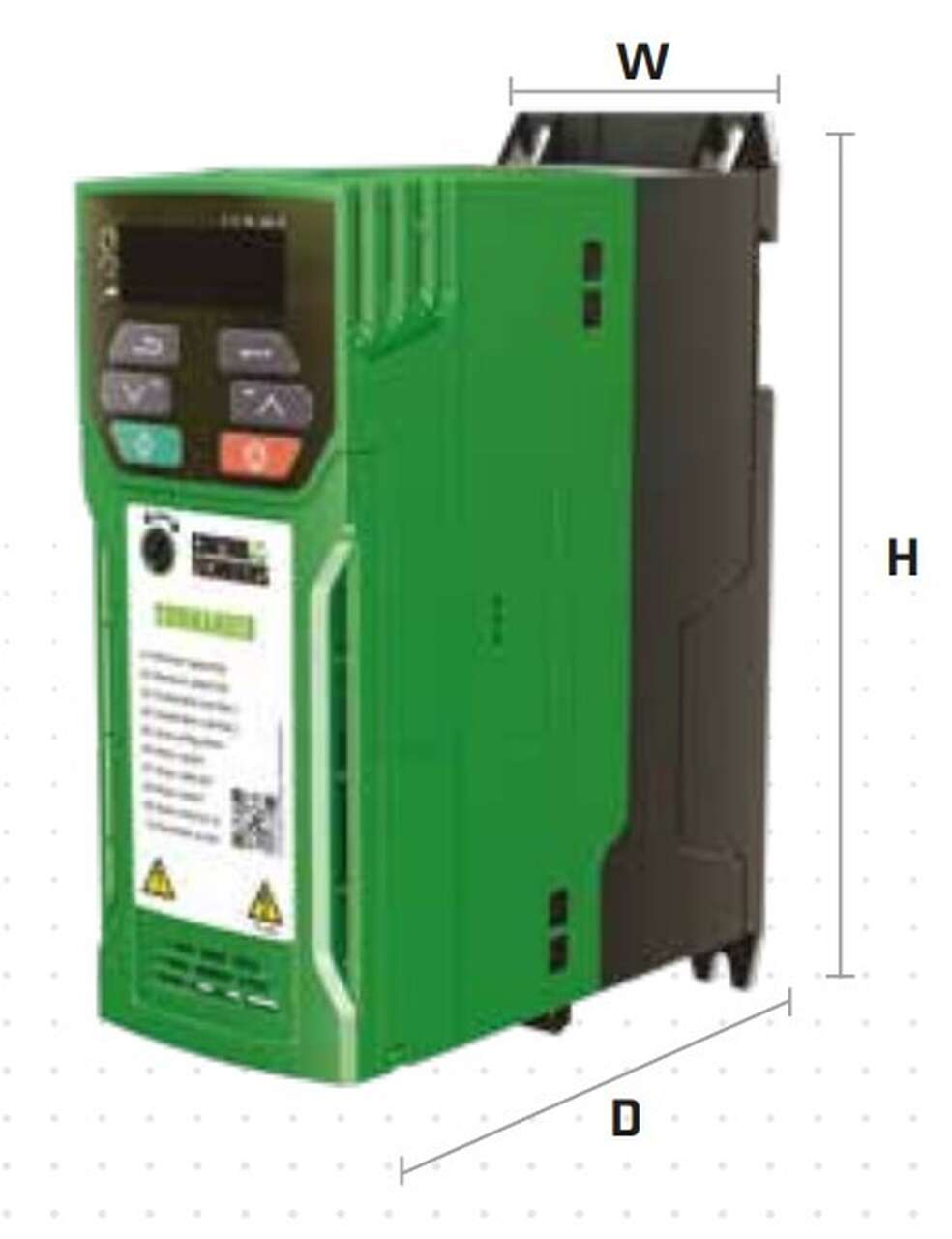

1 fase 100 - 120 Volt AC +/- 10%

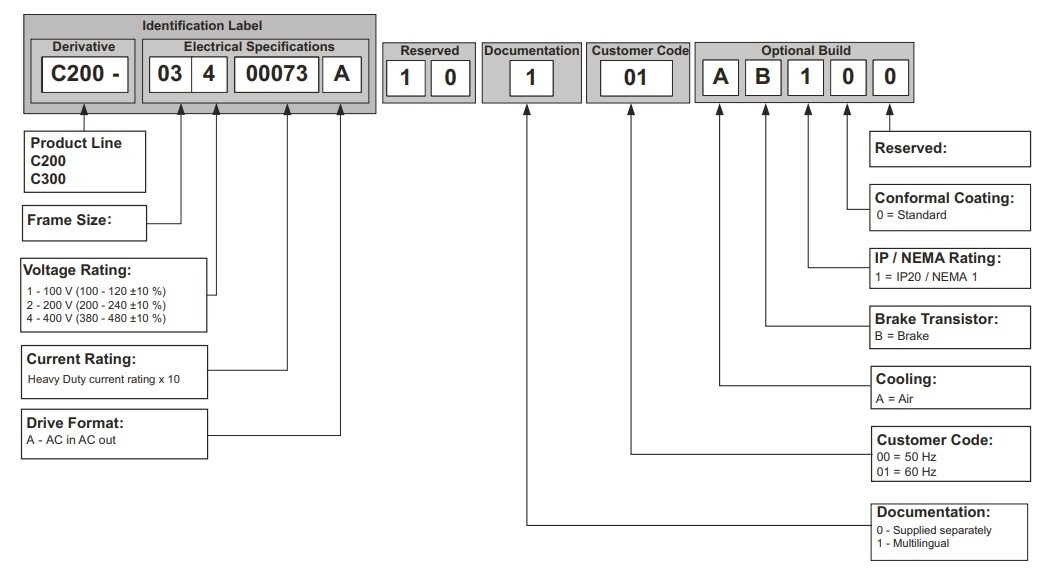

Type (frame 1)powerNominal current part nr.
C200-011-000170,25 kW1,7 AC200-01100017A10100AB100
C200-011-000240,37 kW2,4 AC200-01100024A10100AB100
Type (frame 2)powerNominal current part nr.
C200-021-000420,75 kW4,2 AC200-02100042A10100AB100
C200-021-000561,1 kW5,6 AC200-02100056A10100AB100
remark: output Voltage is 3 Phase 200 - 240 Volt AC!




1 fase 200 - 240 Volt AC +/- 10%
Type (frame 1)powerNominal current part nr.
C200-012-000170,25 kW1,7 AC200-01200017A10100AB100
C200-012-000240,37 kW2,4 AC200-01200024A10100AB100
C200-012-000330,55 kW3,3 AC200-01200033A10100AB100
C200-012-000420,75 kW4,2 AC200-01200042A10100AB100




1 of 3 fase(n) 200 - 240 Volt AC +/- 10%
Type (frame 2)powerNominal current part nr.
C200-022-000240,37 kW2,4 AC200-02200024A10100AB100
C200-022-000330,55 kW3,3 AC200-02200033A10100AB100
C200-022-000420,75 kW4,2 AC200-02200042A10100AB100
C200-022-000561,1 kW5,6 AC200-02200056A10100AB100
C200-022-000751,5 kW7,5 AC200-02200075A10100AB100
Type (frame 3)powerNominal current part nr.
C200-032-001002,2 kW10,0 AC200-03200100A10100AB100
Type (frame 4)powerNominal current part nr.
C200-042-001333,0 kW13,3 AC200-04200133A10100AB100




3 fasen 200 - 240 Volt AC +/- 10%
Type (frame 4)powerNominal current part nr.
C200-042-001764,0 kW17,6 AC200-04200176A10100AB100
Type (frame 5)powerNominal current part nr.
C200-052-002505,5 / 7,5 kW25 / 30 AC200-05200250A10100AB100
Type (frame 6)powerNominal current part nr.
C200-062-003307,5 / 11 kW33 / 50 AC200-06200330A10100AB100
C200-062-0044011 / 15 kW44 / 58 AC200-06200440A10100AB100
Type (frame 7)powerNominal current part nr.
C200-072-0061015 / 18,5 kW61 / 75 AC200-07200610A10100AB100
C200-072-0075018,5 / 22 kW75 / 94 AC200-07200750A10100AB100
C200-072-0083022 / 30 kW83 / 117 AC200-07200830A10100AB100
Type (frame 8)powerNominal current part nr.
C200-082-0116030 / 37 kW116 / 149 AC200-08201160A10100AB100
C200-082-0132037 / 45 kW132 / 180 AC200-08401320A10100AB100
Type (frame 9)powerNominal current part nr.
C200-092-0176045 / 55 kW176 / 216 AC200-09201760A10100AB100
C200-092-0219055 / 75 kW219 / 266 AC200-09402190A10100AB100




3 fasen 380 - 480 Volt AC +/- 10%
Type (frame 2)powerNominal current part nr.
C200-024-000130,37 kW1,3 AC200-02400013A10100AB100
C200-024-000180,55 kW1,8 AC200-02400018A10100AB100
C200-024-000230,75 kW2,3 AC200-02400023A10100AB100
C200-024-000321,1 kW3,2 AC200-02400032A10100AB100
C200-024-000411,5 kW4,1 AC200-02400041A10100AB100
Type (frame 3)powerNominal current part nr.
C200-034-000562,2 kW5,6 AC200-03400056A10100AB100
C200-034-000733,0 kW7,3 AC200-03400073A10100AB100
C200-034-000944,0 kW9,4 AC200-03400094A10100AB100
Type (frame 4)powerNominal current part nr.
C200-044-001355,5 kW13,5 AC200-04400135A10100AB100
C200-044-001707,5 kW17,0 AC200-04400170A10100AB100
Type (frame 5)powerNominal current part nr.
C200-054-0027011 / 15 kW27 / 30 AC200-05400270A10100AB100
C200-054-0030015 kW30 AC200-05400300A10100AB100
Type (frame 6)powerNominal current part nr.
C200-064-0035015 / 18,5 kW35 / 38 AC200-06400350A10100AB100
C200-064-0042018,5 / 22 kW42 / 48 AC200-06400420A10100AB100
C200-064-0047022 / 30 kW47 / 63 AC200-06400470A10100AB100
Type (frame 7)powerNominal current part nr.
C200-074-0066030 / 37 kW66 / 79 AC200-07400660A10100AB100
C200-074-0077037 / 45 kW77 / 94 AC200-07400770A10100AB100
C200-074-0100045 / 55 kW100 / 112 AC200-07401000A10100AB100
Type (frame 8)powerNominal current part nr.
C200-084-0134055 / 75 kW134 / 155 AC200-08401340A10100AB100
C200-084-0157075 / 90 kW157 / 184 AC200-08401570A10100AB100
Type (frame 9)powerNominal current part nr.
C200-094-0200090 / 110 kW200 / 221 AC200-09402000A10100AB100
C200-094-02240110 / 132 kW224 / 266 AC200-09402240A10100AB100




3 fasen 500 - 575 Volt AC +/- 10%
Type (frame 5)powerNominal current part nr.
C200-055-000301,5 / 2,2 kW3,0 / 3,9 AC200-05500030A10100AB100
C200-055-000402,2 / 4,0 kW4,0 / 6,1 AC200-05500040A10100AB100
C200-055-000694,0 / 5,5 kW6,9 / 10 AC200-05500069A10100AB100
Type (frame 6)powerNominal current part nr.
C200-065-001005,5 / 7,5 kW10 / 12 AC200-06500100A10100AB100
C200-065-001507,5 / 11 kW15 / 17 AC200-06500150A10100AB100
C200-065-0019011 / 15 kW19 / 22 AC200-06500190A10100AB100
C200-065-0023015 / 18,5 kW23 / 27 AC200-06500230A10100AB100
C200-065-0029018,5 / 22 kW29 / 34 AC200-06500290A10100AB100
C200-065-0035022 / 30 kW35 / 43 AC200-06500350A10100AB100
Type (frame 7)powerNominal current part nr.
C200-075-0044030 / 37 kW44 / 53 AC200-07500440A10100AB100
C200-075-0055037 / 45 kW55 / 73 AC200-07500550A10100AB100
Type (frame 8)powerNominal current part nr.
C200-085-0063045 / 55 kW63 / 86 AC200-08500630A10100AB100
C200-085-0086055 / 75 kW86 / 108 AC200-08500860A10100AB100
Type (frame 9)powerNominal current part nr.
C200-095-0104075 / 90 kW104 / 125 AC200-09501040A10100AB100
C200-095-0131090 / 110 kW131 / 150 AC200-09501310A10100AB100




3 fasen 500 - 690 Volt AC +/- 10%
Type (frame 7)powerNominal current part nr.
C200-076-0019015 / 18,5 kW19 / 23 AC200-07600190A10100AB100
C200-076-0024018,5 / 22 kW24 / 30 AC200-07600240A10100AB100
C200-076-0029022 / 30 kW29 / 36 AC200-07600290A10100AB100
C200-076-0038030 / 37 kW38 / 46 AC200-07600380A10100AB100
C200-076-0044037 / 45 kW44 / 52 AC200-07600440A10100AB100
C200-076-0054045 / 55 kW54 / 73 AC200-07600540A10100AB100
Type (frame 8)powerNominal current part nr.
C200-086-0063055 / 75 kW63 / 86 AC200-08600630A10100AB100
C200-086-0086075 / 90 kW86 / 108 AC200-08600860A10100AB100
Type (frame 9)powerNominal current part nr.
C200-096-0104090 / 110 kW104 / 125 AC200-09601040A10100AB100
C200-096-01310110 / 132 kW131 / 150 AC200-09601310A10100AB100




Specifications

power
0.25 to 132 KW
nominal Current
1.7 to 266 A
Supplier
Nidec Control Techniques

Documents

We collected the following documentation as PDF-File, that you can access by clicking on the icons.

If you have searched for info  but is not listed, or not completely answering your requirements, perhaps the document you are looking for is not public.

In that case, please contact us by using the following means:

Commander General Purpose AC Variable Speed Drives Brochure (3.0 MB)
Most of our products can be customized, please contact us Contact
